How to access SD Card in VirtualBox

Jul 14, 2021

VirtualBox users of all levels (from beginner to dev) have numerous scenarios where they require access to a USB device from VirtualBox vms via USB passthrough. Specifically, accessing USB devices that are connected with a host computer.

How do vboxusers successfully conduct VirtualBox USB passthrough within VMs to access their USB hardware devices over ethernet (or other network connections)?

We’ll answer that below...

This article provides step-by-step instructions to show vboxusers how to enable SD card hardware access from an Ubuntu Linux VirtualBox guest machine on a host machine running Windows operating systems over ethernet (or any other network connection.)

Prior to following any of the steps below, ensure that all drivers are updated on all machines participating in the USB passthrough.

Regardless of platform, tool, or OS (VboxManage, Ubuntu, XP, VirtualBox Extension Packs, etc) dev and new vboxusers alike need their drivers to be up to date (or compatible with the version of VirtualBox Extension Pack being used) to maximize successful usb passthrough.

Step 1: Check the Device ID of the SD Card

Step 1-1: Open the Command Prompt (or Windows PowerShell on Windows operating systems- like XP Pro) as an administrator (for example: “Windows” key + “x”. Then select “Command prompt (admin)”)

Step 1-2: Use the wmic command (or the lsusb command on Linux) to list the disc drives. This should be done prior to inserting the SD card into the PC.

wmic diskdrive list brief

Output should read as follows:

Caption DeviceID Model Partitions Size
SAMSUNG MZFLV256HCHP-000MV \\.\PHYSICALDRIVE0 SAMSUNG MZFLV256HCHP-000MV 3 256052966400

Step 1-3: Insert the SD card into the machine and run the same command as before (on a Linux operating system, it would be the lsusb command to list info regarding specific details about USB buses, etc)

Users should see an additional line showing the SD card’s DeviceID. In the following example, the ID reads: “\\.\PHYSICALDRIVE1“.

Caption DeviceID Model Partitions Size
Generic- USB3.0 CRW -SD USB Device \\.\PHYSICALDRIVE1 Generic- USB3.0 CRW -SD USB Device 2 31914086400
SAMSUNG MZFLV256HCHP-000MV \\.\PHYSICALDRIVE0 SAMSUNG MZFLV256HCHP-000MV 3 256052966400

Devs and vboxusers should note: users should know whether they’re using a 3.0 USB device, or a 2.0 (EHCI) USB. “EHCI” stands for: “Enhanced Host Controller Interface”.

Step 2: Create The SD Card’s Virtual Machine(VM) Disk File

Step 2-1: Transfer the folder to the VirtualBox installation folder. In the following example, it will be: “C:\Program Files\Oracle\VirtualBox\”.

cd "C:\Program Files\Oracle\VirtualBox\"

Step 2-2: Using the “VBoxManage.exe” create the SD card’s VMDK file. The final argument regards the SD cards DeviceID (review steps 1-1 to 1-3)

.\VBoxManage.exe internalcommands createrawvmdk -filename C:\sdcard.vmdk -rawdisk
\\.\PHYSICALDRIVE1

If all is well, the output will read “sdcard.vmdk”, and is then created within the C-drive’s root folder.

RAW host disk access VMDK file C:\sdcard.vmdk created successfully.

Step 3: Mount SD Card VirtualBox with VMDK

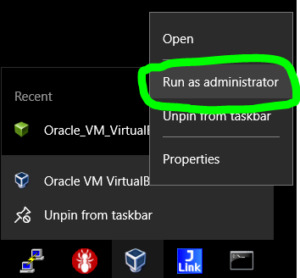

Step 3-1: As the Administrator, launch the VirtualBox GUI

launch the VirtualBox GUI

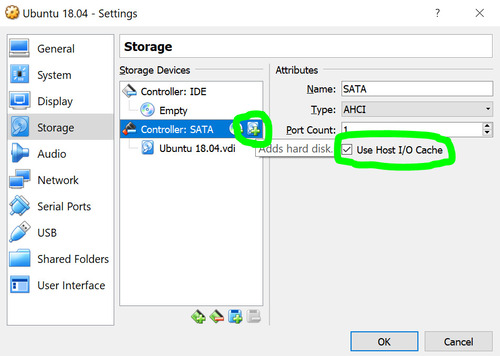

Step 3-2: Within the VirtualBox GUI, navigate as follows: “Setting>Storage”

Step 3-3: Click “Controller: SATA”

Step 3-4: Check the checkbox beside “Use Host I/O Cache”

Step 3-5: Now click the “Adds Hard Disk” icon (shown in the visual aid below)

click the Adds Hard Disk icon

Step 3-6: Select “Choose Existing Disk”

Step 3-7: Go to the C-drive and choose the “sdcard.vmdk” file (the file we created in Step 2)

Step 4: Verify

Launch the Virtual Machine and begin verification. In this example, it looks like: “/dev/sdb” (Raspbian OS image in 32GB SD card).

$ sudo fdisk -l /dev/sdb
Disk /dev/sdb: 29.8 GiB, 32010928128 bytes, 62521344 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0xb1d773dc

Device Boot Start End Sectors Size Id Type
/dev/sdb1 8192 96453 88262 43.1M c W95 FAT32 (LBA)
/dev/sdb2 98304 31116287 31017984 14.8G 83 Linux

Troubleshooting

Unfortunately, while attempting to use the SD card, numerous errors arose. Below are some troubleshooting options for VirtualBox SD card passthrough.

Troubleshooting Option 1:

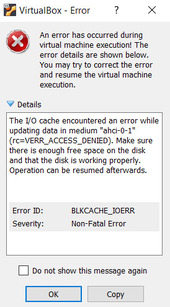

The Error: “I/O cache encountered an error while updating data in medium “ahci-0-1” (rc=VERR_ACCESS_DENIED)”

error

For users who experience the error above, return to Step 2 and ensure the “Use Host I/O Cache” checkbox is checked.

Troubleshooting Option 2

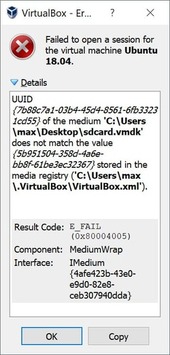

The Error: “UUID of the medium does not match the value stored in the media registry.

failed to open

From within the VirtualBox installation folder, run the following command:

.\VBoxManage.exe list hdds

Users will then have the ability to locate the UUID within the error details

UUID: 5b951504-358d-4a6e-bb8f-61be3ec32367
Parent UUID: base
State: inaccessible
Type: normal (base)
Location: C:\Users\max\Desktop\sdcard.vmdk
Storage format: VMDK
Capacity: 0 MBytes
Encryption: disabled

Use the command below (by specifying the UUID) to remove the disk:

.\VBoxManage.exe closemedium disk 5b951504-358d-4a6e-bb8f-61be3ec32367
